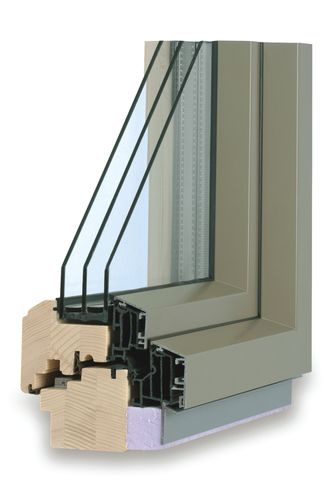

TTK Alu Therm

• Luxurious model of a wooden window protected by aluminium shield from outside, with inner thermal insulation layer
• Top thermal insulation properties
• Suitable for low-energy and passive houses

Materials used:

three-layer glued wood;

• spruce without any longitudinal joints (fixed)
• pine without any longitudinal joints
• meranti without any longitudinal joints
• oak without any longitudinal joints

Surface treatment

Ecological water thinned, thick-layer glazing from the firm “SIKKENS” gives deep impregnation. Shades according to the pattern book “TTK” or to the standard RAL and two-colour combinations or colourless transparent glazing is possible.

Fittings

Peripheral metal fitting “Maco” in the latest “Multitrend” design with safety points, wing lifting and a catch preventing wrong manipulation.

Glass

Thermal insulation double glazing with warm stainless distance frame. Thermal transmission coefficient Ug = 1,1 Wm-2K-1based on your wish up to 0,56 Wm-2K-1 Heat Mirror. MGlazing using ornamental glass, glass with increased safety parameters, glass with increased acoustic or sunshine protection level requirements is possible. Mounting of sun blinds inside the double glass is possible, should you wish.

Outside sheathing

Overlapping aluminium profile “MIRA” or “MIRA THERM” with thermal insulation layer in wide variety of colour shades.
