TTK alu

• perfect design of wood – aluminium combination

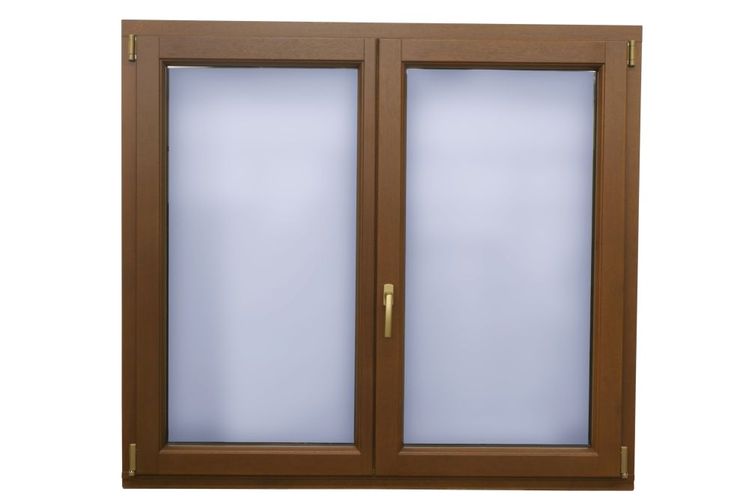

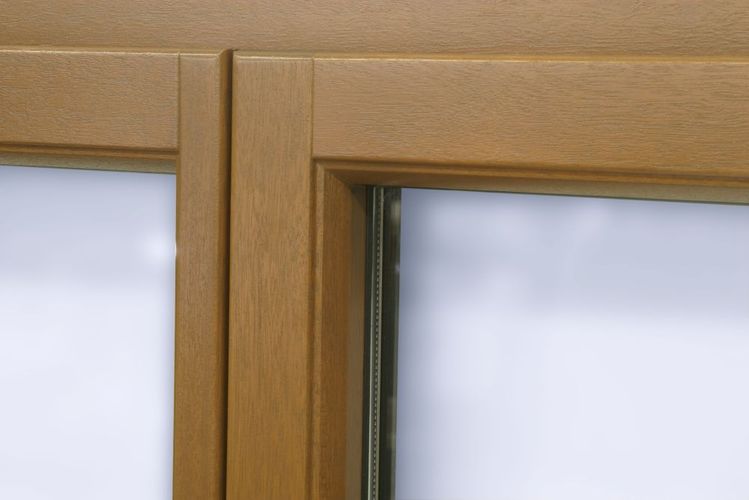

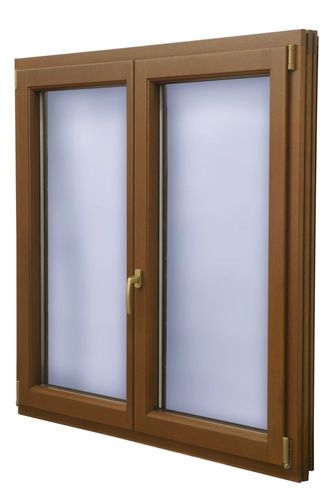

• natural wood inside

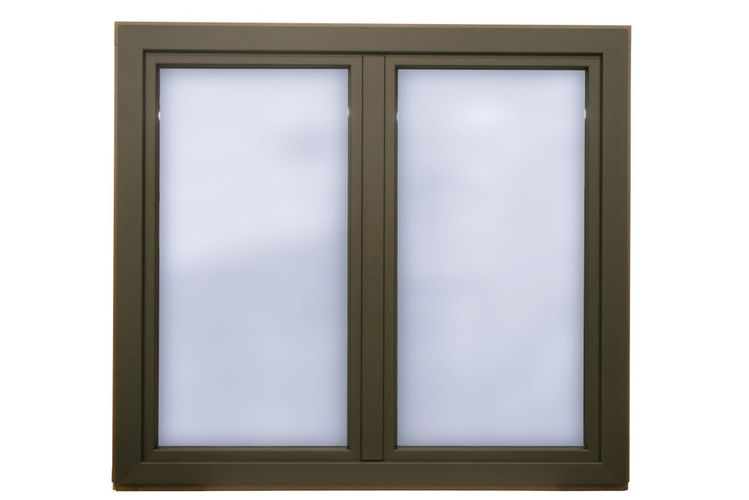

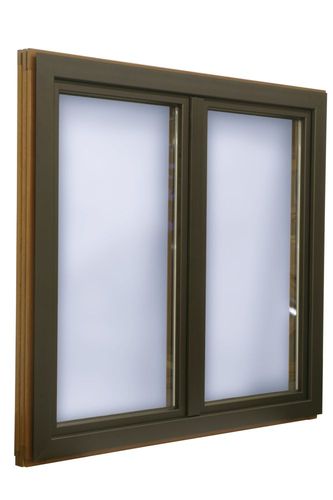

• weather resistant aluminium sheathing on the outside
• unique glazing system without any use of silicone

Used materials:

Three-layer glued wood;

• spruce without any longitudinal joints (fixed)
• pine without any longitudinal joints
• meranti without any longitudinal joints
• oak without any longitudinal joints

Surface treatment:

Ecological water thinned, thick-layer glazing from the firm SIKKENS gives deep impregnation. Shades according to the pattern book TTK or to the standard RAL and two-colour combinations or colourless transparent glazing is possible.

Fittings:

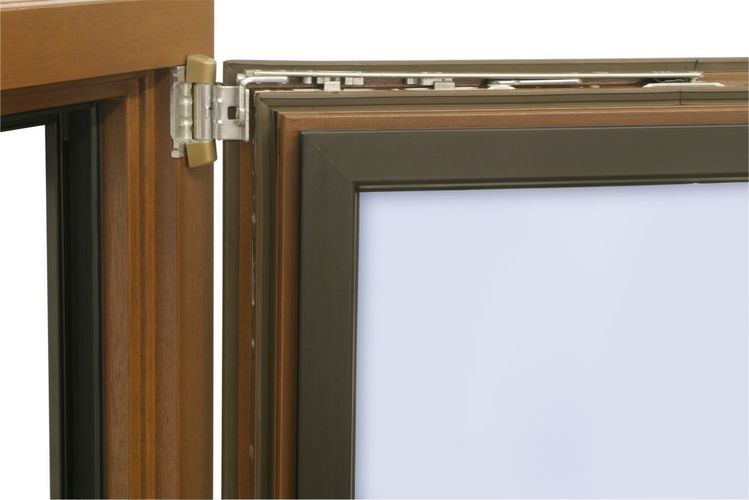

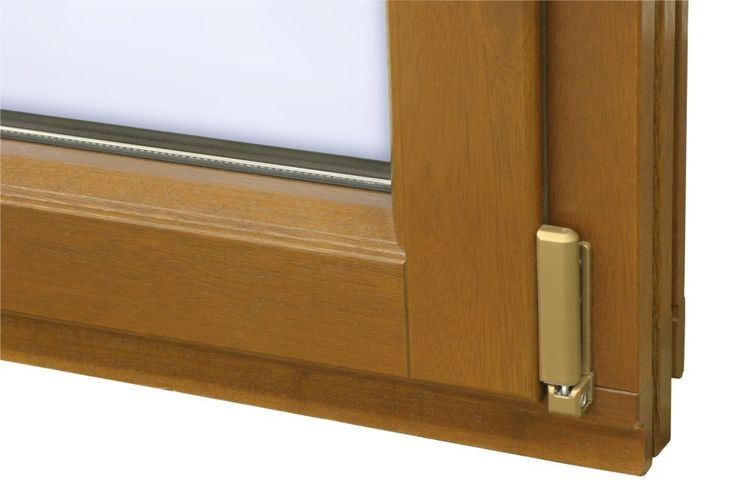

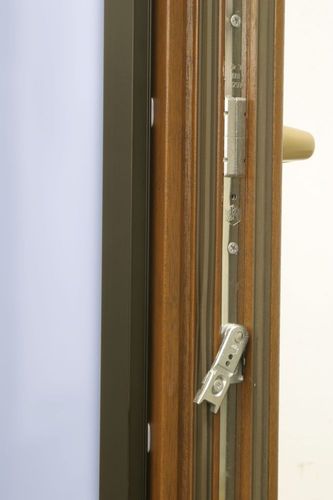

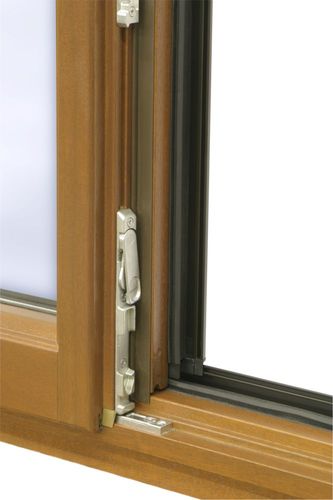

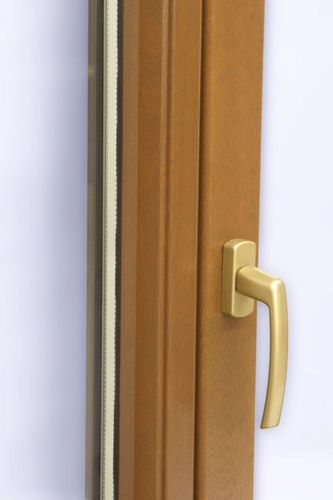

Peripheral metal fitting “Maco” in the latest “Multitrend” design with safety points, wing lifting and a catch, preventing wrong manipulation.

Glass:

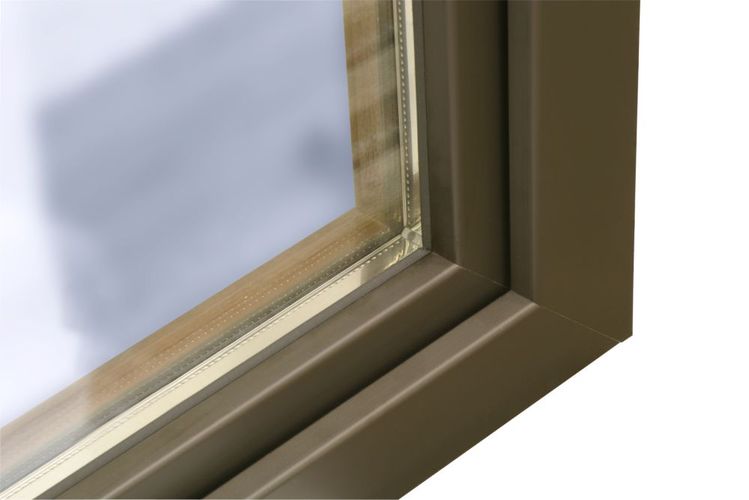

Thermal insulation double glazing with warm stainless distance frame. Thermal transmission coefficient Ug = 1,1 Wm−2 K−1 based on your wish up to 0,56 Wm−2 K−1 Heat Mirror. Glazing using ornamental glass, glass with increased safety parameters, glass with increased acoustic or sunshine protection level requirements is possible. With mounted sun blinds inside the double glass, if required.

Outside sheathing:

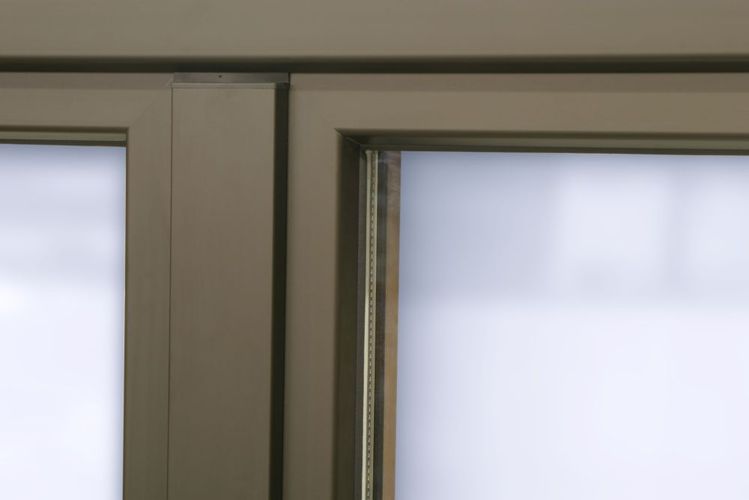

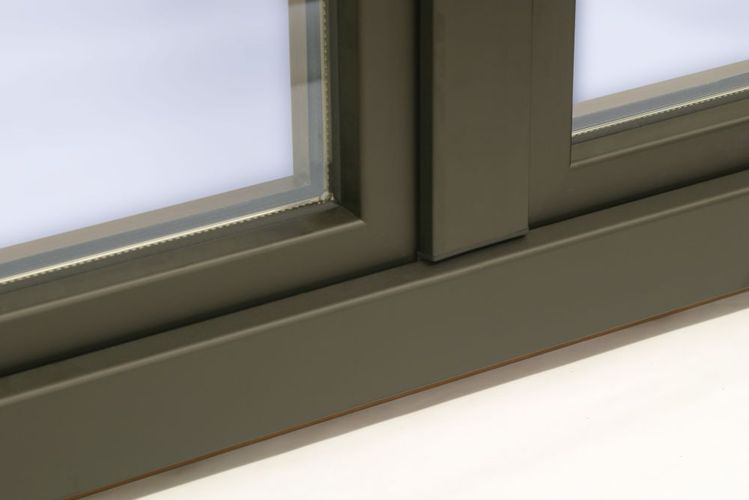

Overlapping aluminium profile MIRA or MIRA THERM with thermal insulation layer in a wide variety of colour shades.
