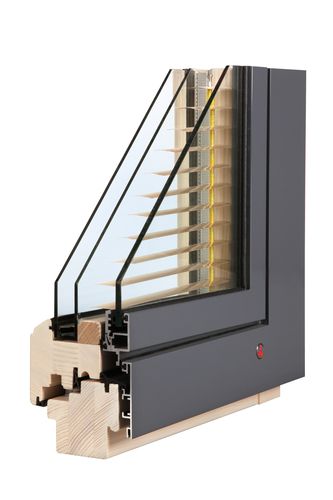

TTK Triplex

• The latest type of wood-aluminium windows
• The window consists of a double glass, fastened in the inner wooden part of the window, and a single glass in the outer aluminium part
• Integrated sun blinds between glasses
• Excellent noise and light protection

Materials used:

Triple glued wooden plate:

• spruce without a longitudinal connection
• pine without a longitudinal connection
• meranti without a longitudinal connection
• oak without a longitudinal connection

Metal fittings:

Peripheral metal fitting “Maco” in the latest “Multitrend” design with safety points, wing lifting and a catch preventing wrong manipulation.

Glass:

Thermal insulation double glass with a warm inter glass stainless frame. Coefficient of heat penetration through a window Ug = 1,1 Wm2 K−1 or 0,7 Wm2 K−1 (option). Possibility to use safety, noise- and sun-proof or ornamental glass.

Surface treatment:

Ecological water thinned, thick-layer glazing from the firm SIKKENS gives deep impregnation. Shades according to the pattern book TTK or to the standard RAL and two-colour combinations or colourless transparent glazing is possible.

Outer coating:

Forward aluminium Mira profile.
