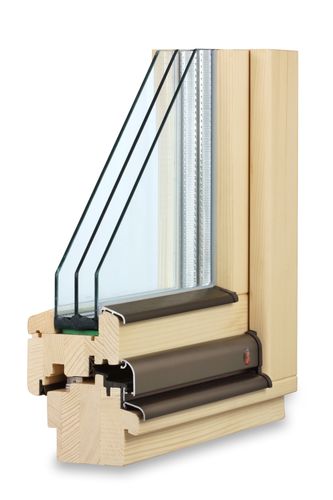

TTK Passive Plus

• New generation of wooden windows TTK Passive Plus
• Superb insulation properties
• Potential to use various types of wood

Materials used:

Glued wooden plate:

• spruce with or without a longitudinal connection
• pine with or without a longitudinal connection
• meranti with or without a longitudinal connection
• oak with or without a longitudinal connection
All plates are filled with a thermal insulation layer.

Metal fittings:

Peripheral metal fitting “Maco” in the latest “Multitrend” design with safety points, wing lifting and a catch preventing wrong manipulation.

Glass:

Standard triple glass Ug = 0,5 Wm−2 K−1. Possibility to use safety, noise-proof or ornamental glass.

Surface treatment:

Ecological water thinned, thick-layer glazing from the firm SIKKENS gives deep impregnation. Shades according to the pattern book TTK or to the standard RAL and two-colour combinations or colourless transparent glazing is possible.

Standard outfit:

• safety metal fittings
• unique system of glazing strips (preventing deformation of corners)
• glazing strip with a covered joint
• frame sill drip with an uninterrupted thermal bridge
• internal and central sealing
• inter glass frame
• four-position handle with a safety catch
• four-level surface treatment, including special joint sealers and front wood treatment
• surface treatment is done in a modern paint shop, compliant with humidity and thermal regulations
• certified management system ČSN EN ISO 9001:2001
• certified CE mark according to EN 14351–1:2006
