TTK Alu Line

• perfect design of wood – aluminium combination
• natural wood on the inside
• weather resistant aluminium sheathing on the outside
• unique glazing system without any use of silicone

Used materials:

Three-layer glued wood:

spruce without any longitudinally joints (fixed)
pine without any longitudinally joints
meranti without any longitudinal joints
oak without any longitudinal joints

Surface treatment:

Ecological water thinned, thick-layer glazing from the firm SIKKENS gives deep impregnation. Shades according to the pattern book TTK or to the standard RAL and two-colour combinations or colourless transparent glazing is possible.

Fittings:

Peripheral metal fitting “Maco” in the latest “Multitrend” design with safety points, wing lifting and a catch preventing wrong manipulation.

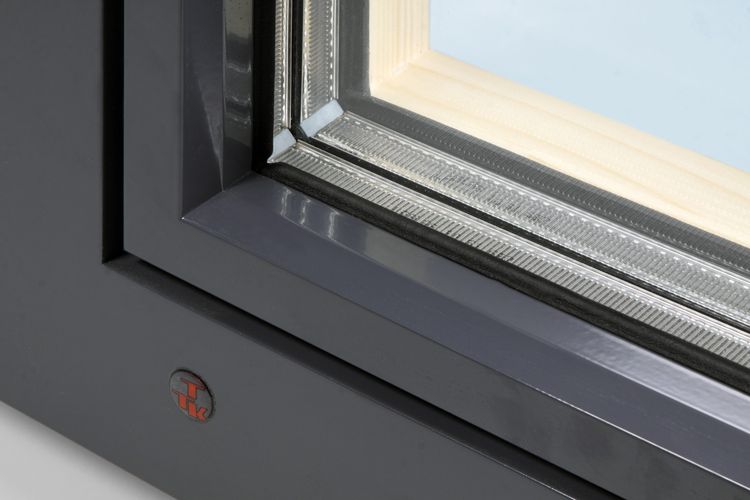

Glass:

Thermal insulation double glazing with warm stainless distance frame. Thermal transmission coefficient Ug = 0,6 Wm−2 K−1 based on your wish up to 0,56 Wm−2 K−1 Heat Mirror. Glazing using ornamental glass, glass with increased safety parameters, glass with increased acoustic or sunshine protection level requirements is possible. Mounting of sun blinds inside the double glass is an option.

Outside sheathing:

Overlapping aluminium profile “MIRA” or “MIRA THERM” with a thermal insulation layer in a wide variety of colour shades.
